ZB

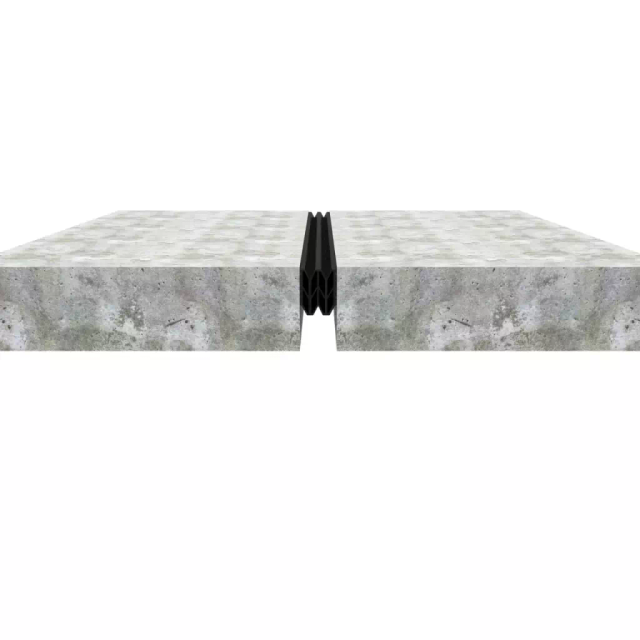

This one-piece parking expansion joint cover has an EPDM seal that allows for movement, while the integral nosing eliminates the need for elastomeric concrete. During installation, the cover is bonded into a high-strength epoxy bedding and is sealed on each side with a urethane sealant, resulting in a durable and watertight system. It is available in five standard roll sizes - 20', 30', 65', 130' and 200'. Joint sizes range from 1" to 4". Contact the factory for larger sizes or custom applications.
lazy image
lazy image

We’re here to help.

Want assistance? It's easy to get in touch with us - use one of the buttons below.

Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our Standard Products, which include a selection of materials for quick and easy online purchases.

Interested in this Product?

We would love to help you! For more information and to purchase, please contact us by requesting a quote below and we will be in touch with you shortly.

We’re here to help.

Want assistance? It's easy to get in touch with us - use one of the buttons below.

Many of our product solutions offer choices for customization, and we would love to talk you through your options. Also consider checking out our Standard Products, which include a selection of materials for quick and easy online purchases.

View:

    Standard Gasket and Seal

  • #108 Black

rfa
rfa
rvt
dwg
dwg
dwg
dwg
dwg
dwg
pdf
pdf

pdf
pdf
pdf
pdf
pdf
pdf
pdf
pdf
pdf

ZB

ModelJoint WidthMin. OpeningMax. OpeningExposed SurfaceBlockout WidthBlockout HeightHorizontal MovementVertical MovementLateral Movement
ZB-1001.00" (25mm)0.50" (13mm)1.50" (38mm)7.50" (191mm)3.50" (89mm)0.75" (19mm)0.47" (12mm)0.39" (10mm)0.50" (13mm)
ZB-2002.00" (51mm)1.00" (25mm)3.00" (76mm)8.50" (216mm)3.50" (89mm)0.75" (19mm)1.02" (26mm)0.39" (10mm)1.00" (25mm)
ZB-3003.00" (76mm)1.50" (38mm)4.50" (114mm)9.50" (241mm)3.50" (89mm)0.75" (19mm)1.50" (38mm)0.47" (12mm)1.50" (38mm)
ZB-4004.00" (102mm)2.00" (51mm)6.00" (152mm)10.50" (267mm)3.50" (89mm)0.75" (19mm)1.97" (50mm)0.59" (15mm)2.00" (51mm)
ZB-100ALT1.00" (25mm)0.50" (13mm)1.50" (38mm)4.25" (108mm)3.50" (89mm)0.75" (19mm)0.47" (12mm)0.39" (10mm)0.50" (13mm)
ZB-200ALT2.00" (51mm)1.00" (25mm)3.00" (76mm)5.25" (133mm)3.50" (89mm)0.75" (19mm)1.02" (26mm)0.39" (10mm)1.00" (25mm)
ZB-300ALT3.00" (76mm)1.50" (38mm)4.50" (114mm)6.25" (159mm)3.50" (89mm)0.75" (19mm)1.50" (38mm)0.47" (12mm)1.50" (38mm)
ZB-400ALT4.00" (102mm)2.00" (51mm)6.00" (152mm)7.25" (184mm)3.50" (89mm)0.75" (19mm)1.97" (50mm)0.59" (15mm)2.00" (51mm)
